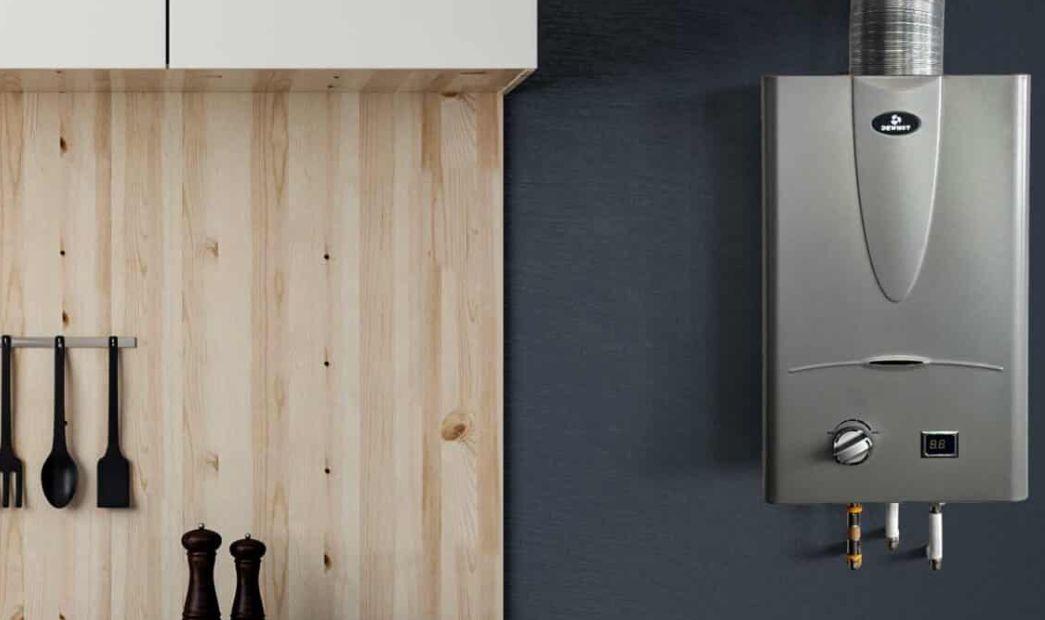

8L Gas Geyser Indoor (Low Pressure)

Product Details

Low pressure

Dewhot’s low-pressure gas geysers use water flow sensor activation to work efficiently even with low water pressure sources like municipal water or gravity-fed tanks.

Energy saving

Enjoy maximised energy savings with on-demand heating, only heating water as you need it.

Double safety

Flame shut-off and pressure relief protection for ultimate peace of mind.

Indoor installation

This gas geyser model must be installed indoors with a 110mm flue or 110mm flexi flue

Outdoor longevity

Install outdoors with a large weather box cover to extend the lifespan and retain the warranty.

Features

• 84% energy efficiency
• Geyser can function on low and high water pressure
• Ventilation is required
• Compatible with mixer taps
• Flame failure safety device (FFD)
• LCD temperature display
• Requires no electricity – flame ignition and geyser functions are battery operated
• Pressure Relief Protection (to function effectively, the valve must be set to your water pressure)

Technical Specification

Max gas pressure 2.8kPa

Max gas consumption 1.32 Kg / hour

Rated Input 16Kw

Water pressure 20-500 kPa

Min water output 2L /min

Max water output 8L/ min

Unit weight 8.5 Kg

Packaged weight 10 Kg

Unit size 590 X 320 X 210m

Packaged size 650 x 350 x 255 mm

For Installer

Cylinder vaporisation rates
(maximum short term use)
48kg = 1,9kg/hr
19Kg = 0,92kg/hr
9kg = 0,46kg/hr
Minimum cylinder size = 19kg
Minimum regulator size = 4kg/hr
Minimum ID pipe size
12mm = less than 7 meters
16mm = between 7-20 meters
